DK20-9,5/110/124 Pepperl Fuchs Print Mark Sensor - Supplier in India
Apple Automation And Sensor is Dealer, and Suppliers of Pepperl Fuchs Print Mark Sensor DK20-9,5/110/124, Pepperl Fuchs Inductive Proximity Sensors, Pepperl Fuchs Photoelectric Sensor, Pepperl Fuchs Thru-Beam Sensors, Pepperl Fuchs Retro Reflective Sensors, Pepperl Fuchs Diffuse Mode Sensors, Pepperl Fuchs Proximity Sensors, Pepperl Fuchsultrasonic Sensors, Pepperl Fuchs Rotary Encoders, Pepperl Fuchs Contrast Sensors, Pepperl Fuchs Fiber Optic Sensors, Pepperl Fuchs Capacitive Sensors, Pepperl Fuchs Intrinsic Safety Barriers, Pepperl Fuchs Isolated Barriers, Pepperl Fuchs Zener Barriers, Pepperl Fuchs Signal Conditioners, Pepperl Fuchs Switch Amplifiers, Pepperl Fuchs Frequency Converter, Pepperl Fuchs Solenoid Drivers, Pepperl Fuchs Relay Modules, Pepperl Fuchs Transmitter Power Supplies, Pepperl Fuchs Repeaters, Pepperl Fuchs Signal Converters, Pepperl Fuchs Trip Amplifiers, Pepperl Fuchs Current Drivers in India. Buy Pepperl Fuchs Print Mark Sensor online in India at wholesale price. We assure you our best rate and prompt delivery. Pepperl Fuchs Print Mark Sensor Sensor range, Light source, Light type, Light spot representation, Angle deviation, Continuous light, Teach-In, Functional safety related parameters, MTTFd, Diagnostic Coverage (DC), Function indicator, Control elements, Electrical specifications, Operating voltage, Ripple, No-load supply current, Input, Function input, Output, Switching type, Signal output, Switching voltage, Switching current, Switching frequency, Response time, Conformity, Product standard, Compliance with standards and directives, Standard conformity, Shock and impact resistance, Vibration resistance, Approvals and certificates, UL approval, CCC approval, Ambient conditions, Ambient temperature, Storage temperature, Mechanical specifications, Housing width, Housing height, Housing depth, Degree of protection, Connection, Material, Housing, Optical face, Mass, Datasheet, Catalogue, Pdf at Best Price. We normally stock Pepperl Fuchs Print Mark Sensor DK20-9,5/110/124.
| Technical Data |
|
| Sensor range | 9.5 mm ± 3 mm |
| Light source |
LED |
| Light type | Visible green/red/blue, modulated light |
| Light spot representation | 1 mm x 4 mm |
| Angle deviation | Max. ± 3° |
| Continuous light | 7000 Lux |
| Teach-In | static Teach-In |
| Functional safety related parameters | |
| MTTFd | 650 a |
| Diagnostic Coverage (DC) | 0.00% |
| Function indicator | LED yellow; switching operation: lights up if print mark is detected Teach-In operation: flashing slowly alarm display: flashing quickly, if no safe operation is possible |
| Control elements | Teach-In key |
| Electrical specifications | |
| Operating voltage | UB 10 ... 30 V DC |
| Ripple | 10.00% |
| No-load supply current | I0 ≤ 70 mA |
| Input | |
| Function input | Teach-In input |
| Output | |
| Switching type | light/dark on switchable, results from the order of the Teach-In |
| Signal output | Push-pull output, short-circuit protected, reverse polarity protected |
| Switching voltage | PNP: ≥ (+UB -2.5 V) , NPN: ≤ 1.5 V |
| Switching current | max. 200 mA |
| Switching frequency | f 16.5 kHz |
| Response time | 30 µs |
| Conformity | |
| Product standard | EN 60947-5-2 |
| Compliance with standards and directives |
|
| Standard conformity | |
| Shock and impact resistance | IEC / EN 60068. half-sine, 40 g in each X, Y and Z directions |
| Vibration resistance | IEC / EN 60068-2-6. Sinus. 10 -150 Hz, 5 g in each X, Y and Z directions |
| Approvals and certificates | |
| UL approval | cULus Listed , Class 2 power source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient conditions | |
| Ambient temperature | 20 ... 60 °C (-4 ... 140 °F) |
| Storage temperature | -20 ... 75 °C (-4 ... 167 °F) |
| Mechanical specifications | |
| Housing width | 33 mm |
| Housing height | 85.6 mm |
| Housing depth | 60.8 mm |
| Degree of protection | IP67 |
| Connection | 5-pin, M12 x 1 connector |
| Material | |
| Housing | PC (glass-fiber-reinforced Makrolon) |
| Optical face | glass |
| Mass | 200 g |

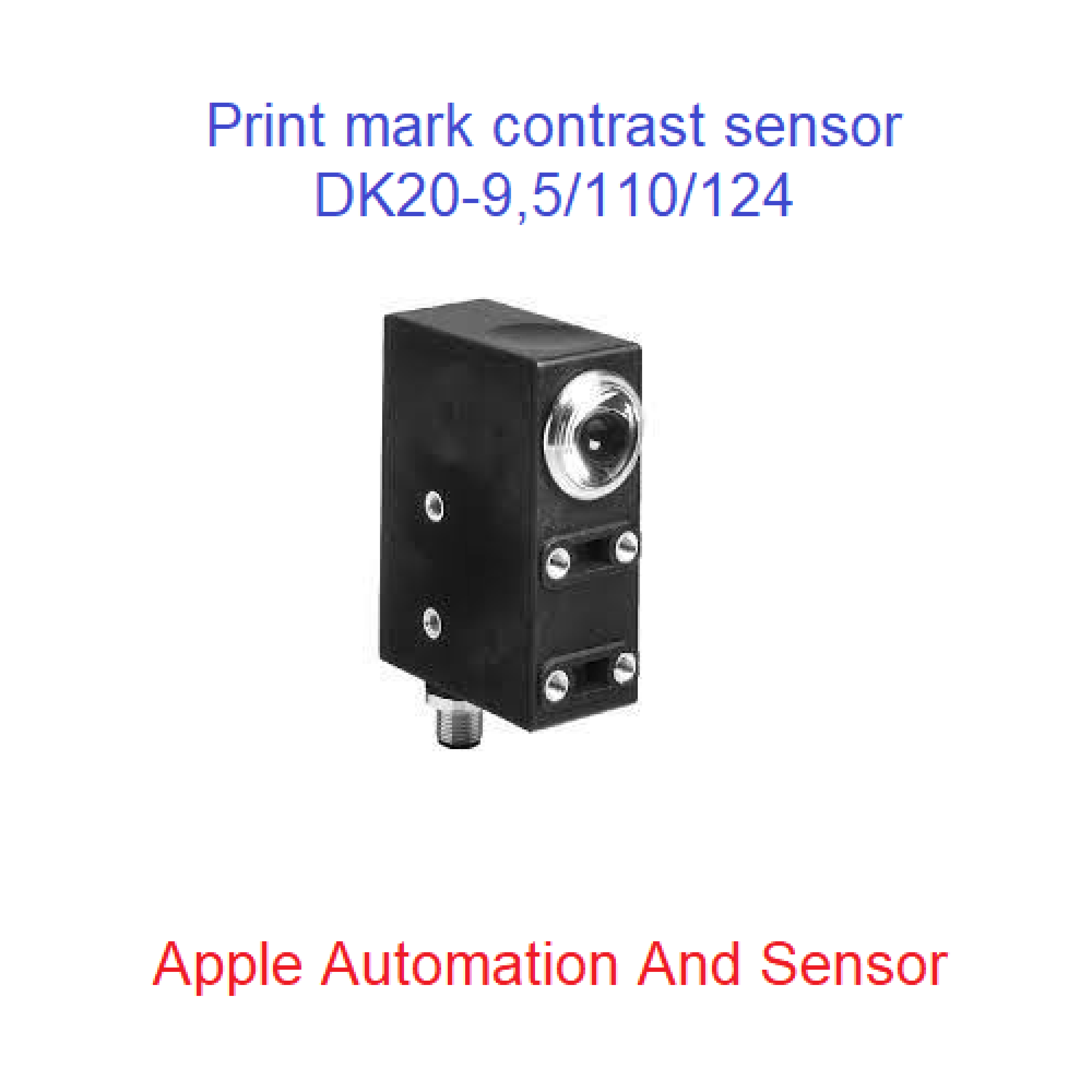

Pepperl Fuchs Print Mark Sensor DK20-9,5/110/124
- Brand: Pepperl Fuchs Print Mark Sensor
- Product Code: DK20-9,5/110/124
- Availability: In Stock
-
₹5,500.00
