BW20-12P

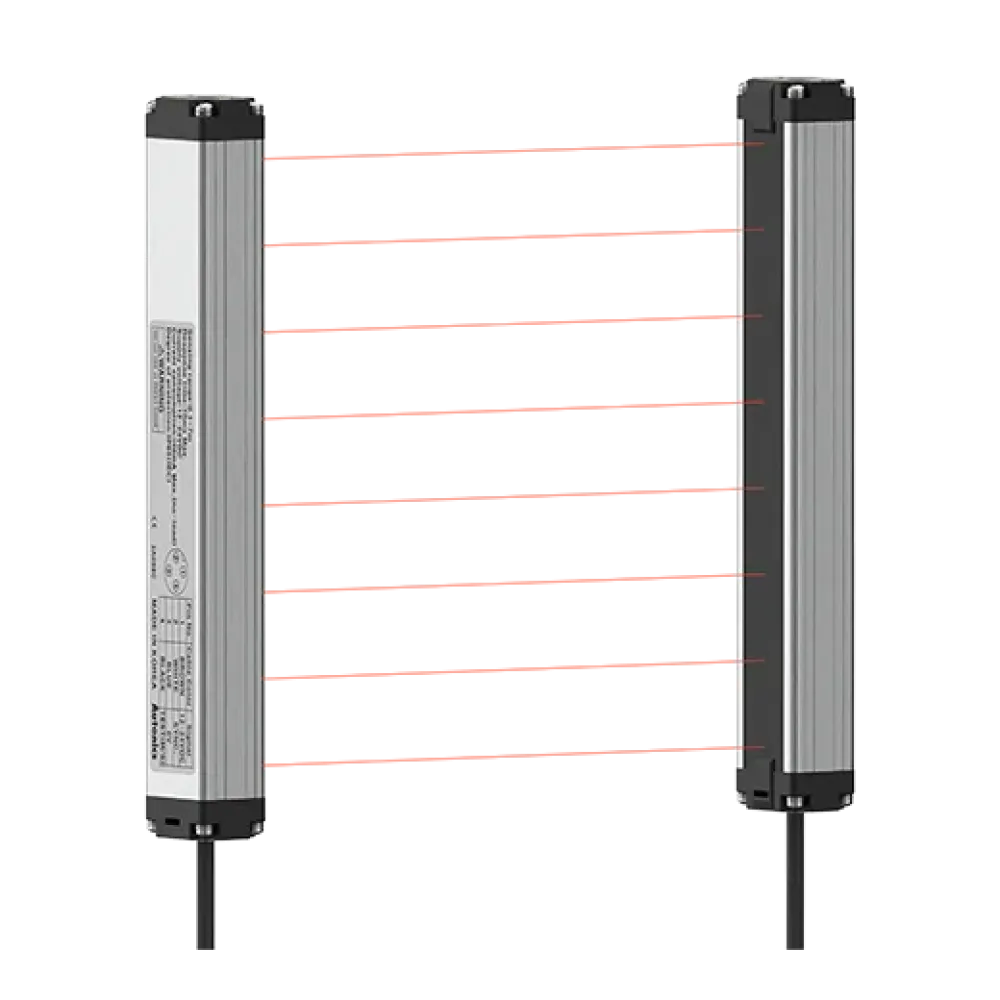

Autonics BW20-12P General Purpose Area Sensors
Features
- Sensing type : Through-beam type(direct beam)
- Sensing distance : 0.1 to 7m
- Light source : Infrared LED(850nm modulated)
- Optical axis pitch : 20mm
- Number of optical axes : 12
- Power voltage : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
- Control output : PNP open collector
- Operation mode : Light ON
Data Sheet
| Specification | Value |
|---|---|
| Sensing type | Through-beam type(direct beam) |
| Sensing distance | 0.1 to 7m |
| Light source | Infrared LED(850nm modulated) |
| Optical axis pitch | 20mm |
| Number of optical axes | 12 |
| Sensing height/Total length | 220/240mm |
| Power voltage | 12-24VDC @(=) ±10%(ripple P-P: max. 10%) |
| Control output | PNP open collector |
| Operation mode | Light ON |
| Environment_Ambient illumination | Ambient light: Max. 100,000lx(receiver illumination) |
| Environment_Ambient temperature | -10 to 55℃, storage: -20 to 60℃ |
| Connection type | Cable connector type |
| Protection structure | IP65(IEC standard) |
| Environment_Ambient humidity | 35 to 85 %RH, storage: 35 to 85 %RH (no freezing or condensation) |
| Min. sensing target | Opaque material of min. Ø30mm |
| Response time | Max. 10ms |
| Material | • Case: Aluminum • Front cover, sensing part: Acrylic |
| Cable specification | Ø5mm, 4-wire, 300mm, M12 connector |
| Accessories | Bracket A: 4, Bracket B: 4, Fixing bolt: 8 |
| Weight | BW20-48: Approx. 2.1kg(approx. 1.4kg) |
Notes
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
