TR1D-T4CC

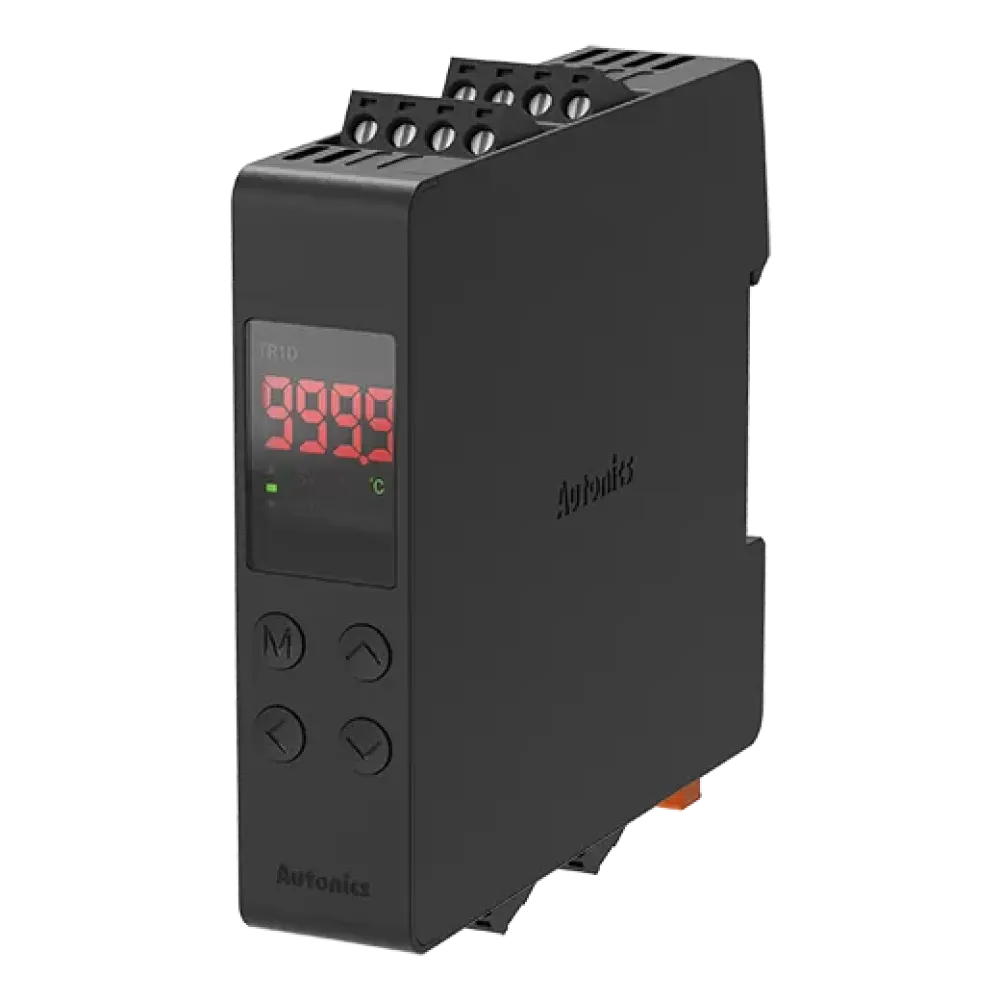

Autonics TR1D-T4CC Slim Single Display PID Temperature Controllers

Features

Power voltage : 100-240VAC~ 50/60Hz
Allowable voltage range : 90 to 110% of rated voltage
Power consumption : Max. 8VA
Control output_SSR : Max. 12VDC @(=) ±3V 20mA
Control output_Current : Selectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω)
Option output_Trans. : DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.)
Option output_Comm. : RS485 communication output (Modbus RTU/ASCII method)

Data Sheet

Power voltage	100-240VAC~ 50/60Hz
Allowable voltage range	90 to 110% of rated voltage
Power consumption	Max. 8VA
Sampling cycle	50, 100, 250ms
Input type_RTD	DPt100Ω, Cu50Ω, Nickel120Ω (permissible line resistance max. 5Ω)
Input type_TC	K(CA), J(IC), L(IC), T(CC), R(PR), S(PR)
Input type_CT	0.0-50.0A(primary current measurement range) ※CT ratio=1/1000
Display accuracy	RTD/Thermocouple: ㆍ At room temperature (23℃ ±5℃): (PV ±0.3% or ±1℃, select the higher one) ±1-digitㆍ Out of room temperature ranges: (PV ±+H400.5% or ±2℃, select the higher one) ±1-digit
Display accuracy_CT input	±5% F.S. ±1-digit
Control output_SSR	Max. 12VDC @(=) ±3V 20mA
Control output_Current	Selectable DC 4-20mA or DC 0-20mA(load resistance max. 500Ω)
Option output_Trans.	DC 4 - 20 mA (load resistance: ≤ 500 Ω, output accuracy: ±0.3% F.S.)
Option output_Comm.	RS485 communication output (Modbus RTU/ASCII method)
Display method	7-segment (red) 4-digit
Control method	ON/OFF, P, PI, PD, PID
Control output_Hysteresis	Control output: 1 to 100℃/℉ (0.1 to 100.0℃/℉)Alarm output: 1 to 100℃/℉ (0.1 to 50.0℃/℉)
Proportional band	0.1 to 999.9℃
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	Relay output: 0.5 to 120.0 sec, SSR output: 0.5 to 120.0 sec
Dielectric strength	Between the charging part and the case : 3,000 VAC~ 50/60 Hz for 1 min
Vibration	0.75 mm amplitude at frequency of 5 to 55 Hzin each X, Y, Z direction for 2 hours
Relay life cycle_Mechanical	OUT1/2, AL1/2: min. 5,000,000 operations
Relay life cycle_Electrical	OUT1/2, AL1/2: min. 100,000 (resistance load: 250VAC~ 5A)
Insulation type	Double insulation or reinforced insulation (dielectric strength between the charging part and the case: 3 kV)
Noise immunity	±2 kV square shaped noise by noise simulator (pulse width: 1 ㎲) R-phase, S-phase
Memory Protection	≈ 10 years (non-volatile semiconductor memory type)
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 194.5g (approx. 123.5g)

Notes

Download PDF Manual

► Click Here to Download TR1D-T4CC Manual (PDF)

Disclaimer

Specifications, dimensions, electrical ratings, availability, and product details mentioned above are subject to change without prior notice. Please verify the latest specifications, dimensions, electrical ratings, technical parameters, and product details with the manufacturer before purchase or installation.
