BS5-P1ML-P

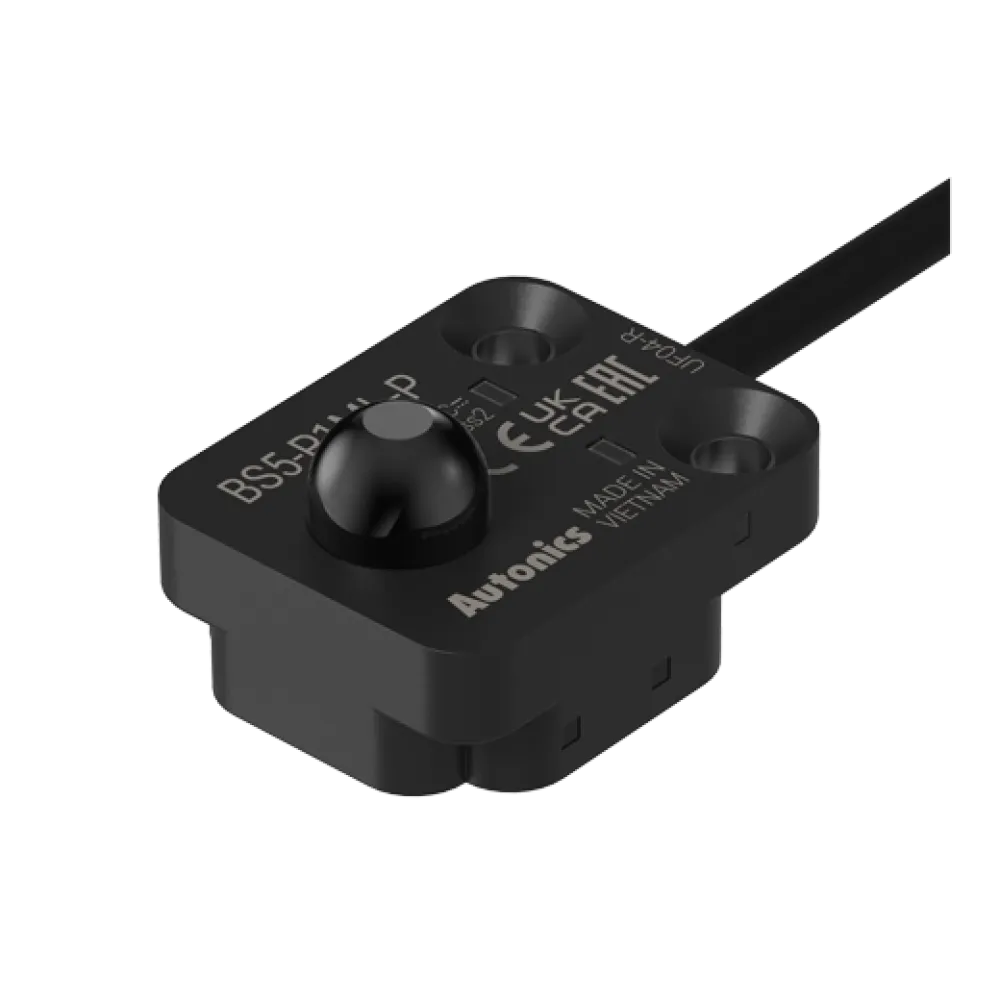

Autonics BS5-P1ML-P Push Button Type Photomicro Sensors
Features
- Operation method : Push Button Type
- Power voltage : 12-24VDC @(=) ±10%(ripple P-P: max. 10%)
- Operation mode : Light ON(output OFF when button ispushed)
- Control output : PNP open collector
Data Sheet
| Operation method | Push Button Type |
| Button operation_Stop position | 5.0±0.4mm |
| Button operation_Output switching position | 4.0±0.5mm |
| Button operation_Operation limit position | Max. 0mm |
| Light source | Infrared LED(940nm) |
| Power voltage | 12-24VDC @(=) ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 35mA |
| Operation load | Max. 3N(Max. 0.3kgf) |
| Operation mode | Light ON(output OFF when button ispushed) |
| Control output | PNP open collector |
| Connection type | Cable type(Ø3, 1m) |
| Environment_Ambient illumination | Fluorescent lamp: Max. 1,000lx(received illumination) |
| Environment_Ambient temperature | -20 to 55℃, storage: -25 to 70℃ |
| Protection structure | IP40 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| External input_Response | Max. 1ms |
| Material | Case: Polycarbonate + Glass fiber, Button: Polyoxymethylene, Sleeve: SUS304(steel use Stainless 304) |
| Weight | Approx. 50g(approx. 30g) |
Notes
※Stop position: position of the button without any applied pressure, Output switching position: position where the output switches ON/OFF, Operation limit position: position of the button when fully pushed@(PIC_1_EN)
※Operation load: Pressure required to push the button from stop position to output switching position
※External input when using emitter OFF function or check stable operation functions.
※The weight includes packaging. The weight in parenthesis is for unit only.
※The temperature or humidity mentioned in Environment indicates a non freezing or condensation.
Download PDF Manual
